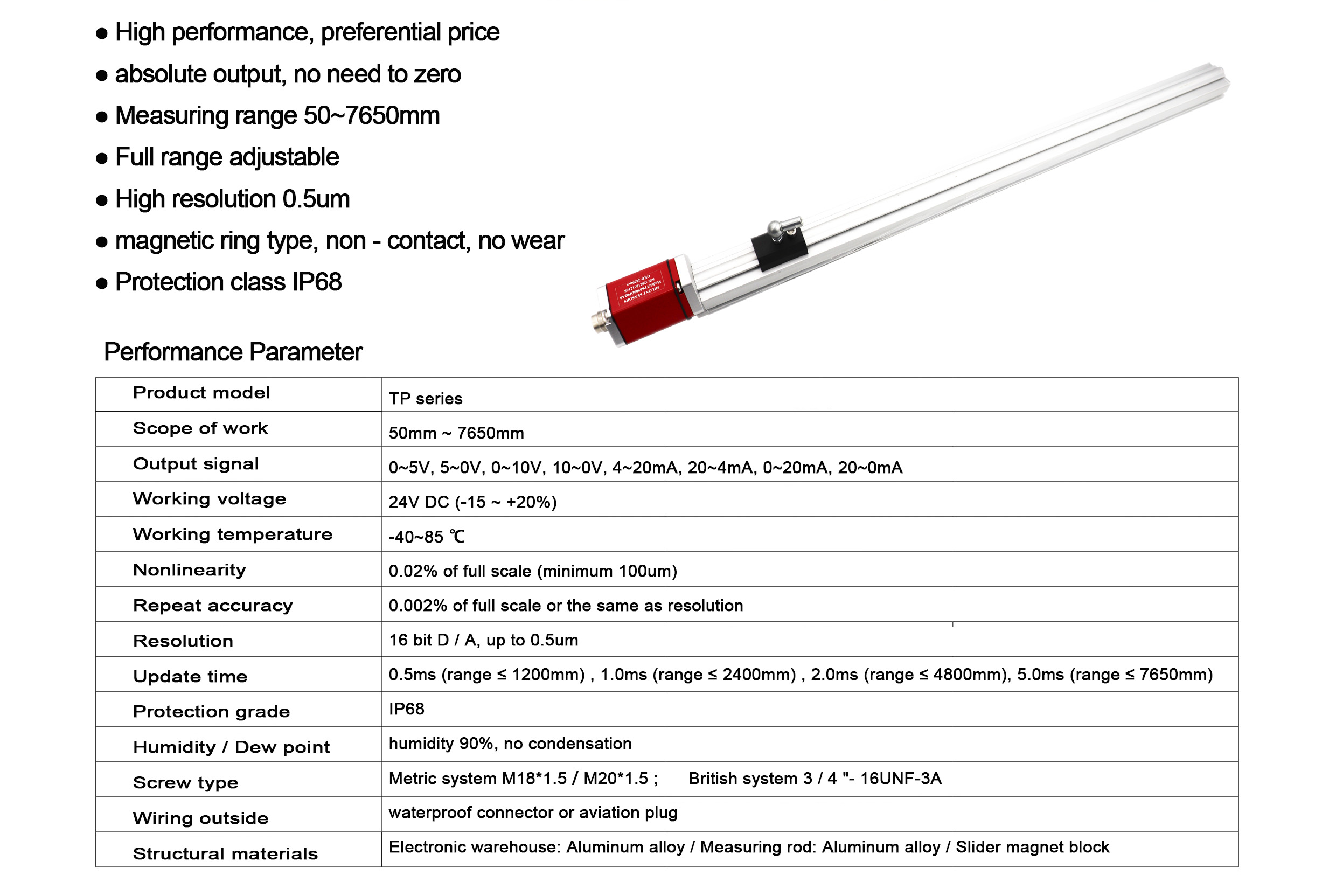

◆ Strong and durable: Fully enclosed design, the highest IP68 protection level
◆ Straight line measurement Absolute output, no need to return to zero
◆ Easy to use: Standard signal output, maintenance free
◆Never wear: Continuous non-contact measurement
◆ Full range adjustable: 100% adjustable zero and full range
◆ High resolution: The highest resolution is 0.5um
Input
Measurement data location
Measurement range: 50mm-7650mm
?
Output
Voltage：0～10Vdc，10~0Vdc，0～5Vdc，5～0Vdc
(controller minimum load: ＞5k Ohms）
Electric current： 4～20mA，20～4mA，0～20mA，20～0mA
(minimum / heavy load 0 / 500 Ohms)
?
Accuracy
Resolution 16 bit D / A, up to 0.5um??????
Nonlinearity < 0.02% of full scale (minimum 100um)
Repeatability < 0.002% of full scale or the same as resolution
Update time 0.5ms (range ≤ 1200mm)
1.0ms (range ≤ 2400mm)
2.0ms (range ≤ 4800mm)
5.0ms (range ≤ 7650mm)
?
Working conditions
Magnetic ring speed: arbitrary
Working temperature ：- 40 ～ 85 ℃
Humidity / dew point humidity ：90%, no condensation
Temperature coefficient<30ppm / ℃
Protection grade：IP65 RP aluminum forming outer pipe
IP67 RH pressure outer tube ??????
IP68 RH pressure resistant outer pipe (waterproof type)
?
?
?
Structure and materials

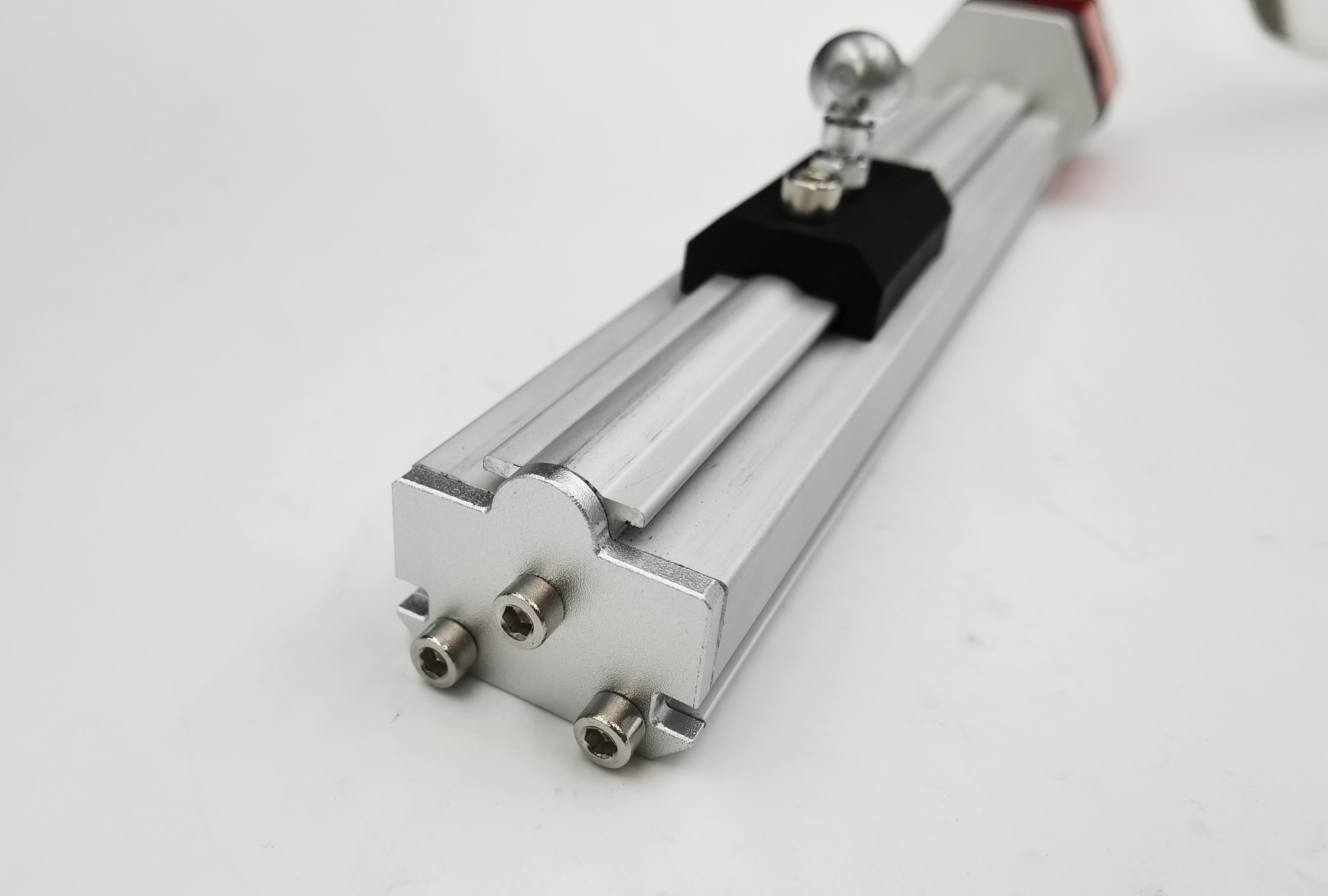

RP series; ?????Electronic warehouse： Aluminum alloy profiles ???????????????
Measuring rod： Aluminum alloy ????
Magnet： Slider magnet or floating magnet ?
RH series: ?????Electronic warehouse：Aluminium alloy profile ?????????????????
Measuring rod：stainless steel 304 or 316L??
Magnetic ring：Standard magnetic ring or open magnetic ring ??????
Outer pipe pressure40MPa (continuous)
60MPa (peak value)
?
Install
Installation direction：arbitrary direction
Thread form： metric m18 × 1.5 ，M20 × 1.5
British system 3 / 4 "- 16UNF-3A
?
Electrical connection
Outlet type： waterproof connector or aviation plug
Input voltage： 24 VDC (- 15 ~ + 20%)
polarity protection Maximum ：- 30VDC
Overpressure protection： Maximum36VDC
Working current ＜70mA (varies with measuring range)
