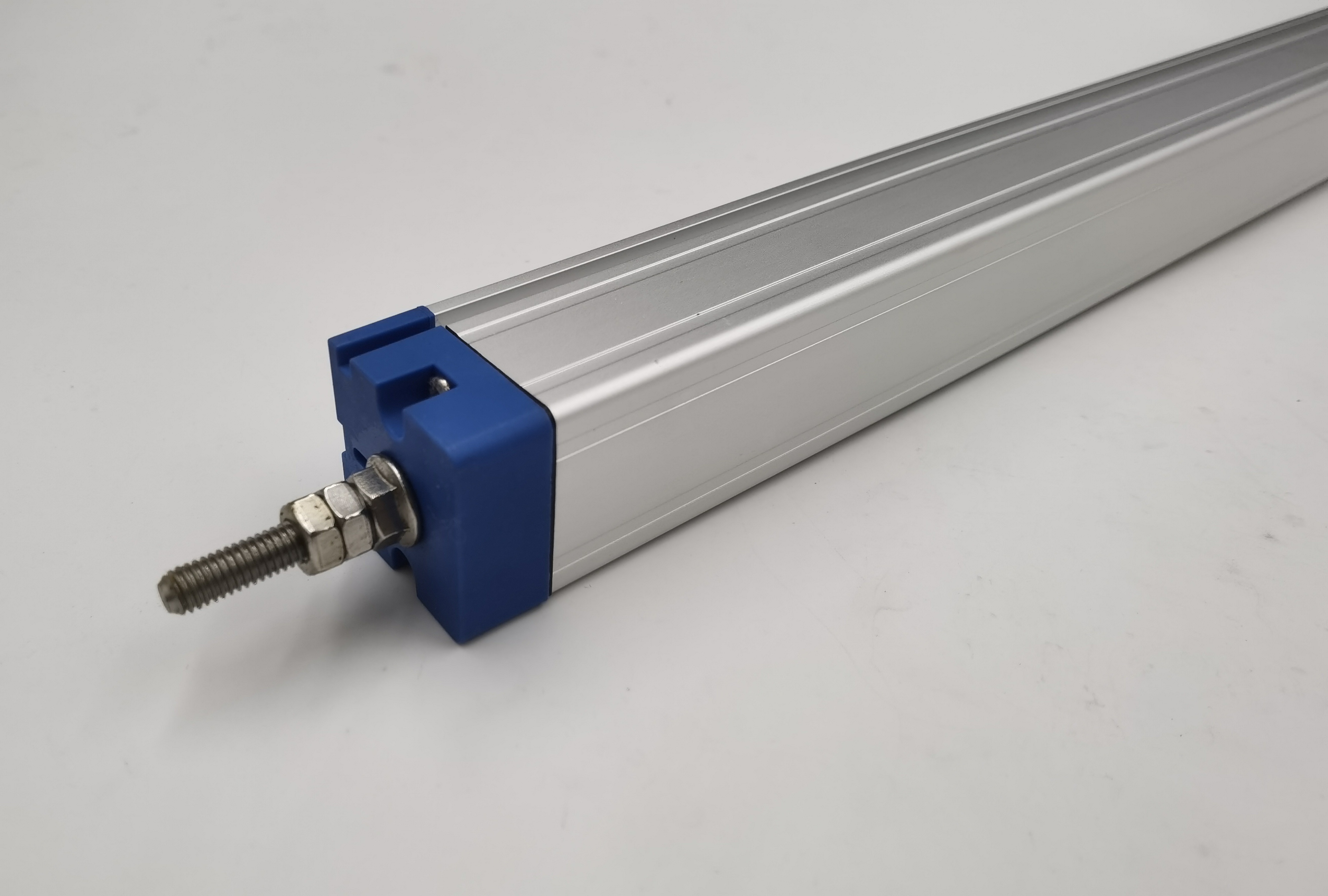

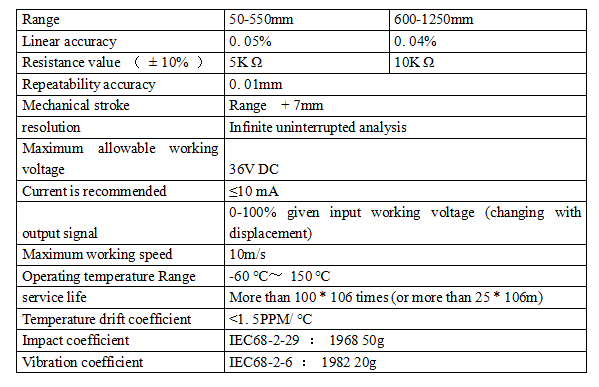

Performance parameters of displacement sensor:
? ? ? Model: KTC
? ? ? Range: 50-1250mm
? ? ? Resistance: 5K (or 10K)
? ? ? Linear accuracy: ± 0.05%
? ? ? Repeatability accuracy: 0.01mm
? ? ? Resolution: infinite analysis
? ? ? Maximum allowable working voltage: 36V
? ? ? Recommended current: ≤ 10mA
? ? ? Output signal: voltage signal
? ? ? Maximum working speed: 10M / S
? ? ? Service temperature: - 60 ℃ to + 150 ℃
? ? ? Service life: > 100 million times
? ? ? Temperature drift coefficient: < 1.5ppm / ℃
? ? ? Impact coefficient: iec68-2-29: 1968 50g
? ? ? Vibration coefficient: iec68-2-6:1982 20g
Application area:
? ? ?Injection molding machine
? ? ?Die casting machine
? ? ?Rubber machine
? ? ?Shoe machine
? ? ?EVA injection machine
? ? ?Hollow bottle blowing machine
? ? ?Woodworking machinery
? ? ?Hydraulic machinery
